Engineering Fundamentals • Part 1 of 2

Stainless Steel Metallurgy & Passivation Fundamentals

Engineering-level guide to stainless steel composition, microstructure, and the chromium oxide passive layer that governs corrosion resistance. Essential knowledge for specifying materials and passivation processes in pharmaceutical, semiconductor, and high-purity applications.

🔬 Chromium Oxide Layer 📊 304 vs 316L Comparison ⚙️ Crystal Structure Analysis ✓ ASTM/ASME Standards
1-5
Nanometers Thick
10.5%
Min Chromium
316L
Industry Standard
Request Technical Consultation Continue to Part 2 →
🔬
Passive Layer Properties
Cr₂O₃ Oxide Film
Cr₂O₃ Layer Base Steel
Thickness 1–5 nm
Composition Cr₂O₃
Self-Healing <1 min
pH Stability 4–14
• ASTM A967 Compliant
• ASTM A380 Testing
• ASME BPE Standards
• SEMI F-Series
• FDA 21 CFR 211
• EU GMP Annex 1
• CGA G-4.1
• 3-A Sanitary
• ASTM A967 Compliant
• ASTM A380 Testing
• ASME BPE Standards
• SEMI F-Series
• FDA 21 CFR 211
• EU GMP Annex 1
• CGA G-4.1
• 3-A Sanitary
🔬 Science of Corrosion Protection

The Chromium Oxide Passive Layer

Understanding the invisible 1-5 nanometer film that makes stainless steel "stainless" — and why proper passivation is essential to maximize its protective properties.

What Makes Stainless Steel "Stainless"?

Stainless steel is not inherently stainless. Its corrosion resistance comes from a thin, invisible, self-healing chromium oxide (Cr₂O₃) film that forms naturally when chromium in the alloy reacts with atmospheric oxygen.

This passive layer is typically 1–5 nanometers thick (approximately 3–10 atomic layers) but provides extraordinary protection against corrosion, oxidation, and chemical attack.

Formation Mechanism

When chromium content exceeds approximately 10.5% by weight, the alloy transitions from "corrodible steel" to "stainless steel" through spontaneous passive layer formation:

Chemical Reaction
4 Cr (solid) + 3 O₂ (gas) → 2 Cr₂O₃ (passive film)

Result: Dense, adherent, transparent oxide barrier

This layer is:

  • Self-healing — Minor damage repairs itself in presence of oxygen
  • Chemically inert — Resists most acids, bases, and solvents
  • Non-porous — Prevents oxygen and moisture penetration to base metal
  • Transparent — Maintains metallic appearance

Passive Layer Properties

Thickness
1–5 nanometers (3–10 atomic layers)
Composition
Chromium oxide (Cr₂O₃) with minor iron oxides
Formation Time
Seconds to minutes in air or oxidizing environment
Self-Healing Rate
Complete repair in <1 minute (ambient oxygen)
pH Stability Range
pH 4–14 (varies by alloy composition)

⚠️ Why Passivation Is Required

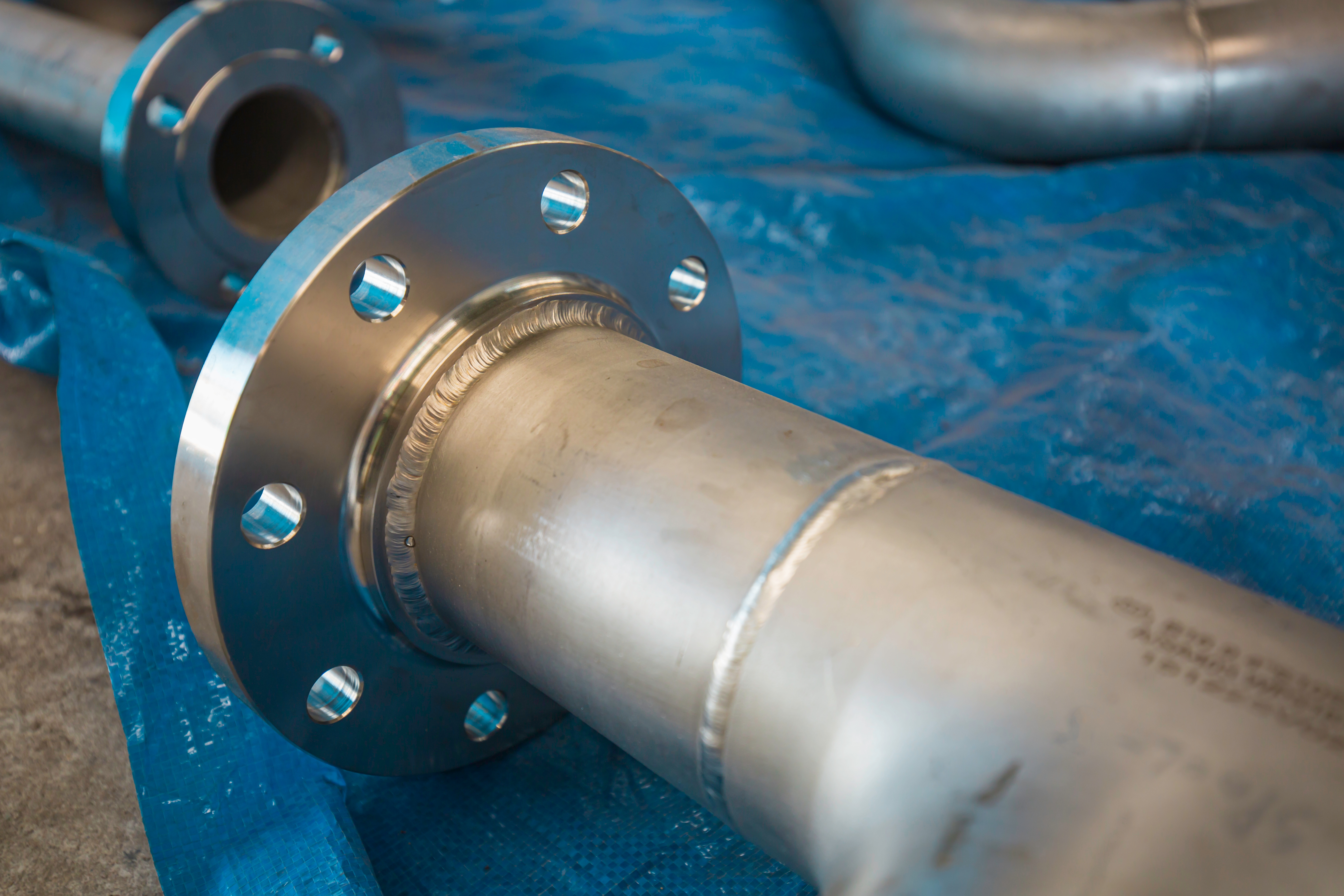

Fabrication, welding, grinding, and handling introduce free iron, heat tint, and contamination that disrupt or prevent proper passive layer formation. Passivation chemically restores optimal surface composition by removing embedded iron and allowing chromium to dominate the surface, enabling rapid, uniform Cr₂O₃ formation.

10.5%
Minimum Chromium Content Required
📊 Material Selection

Stainless Steel Grades Comparison

Comprehensive composition and application guide for common stainless steel alloys. Understanding grade differences is critical for selecting optimal passivation chemistry.

Grade Composition (wt%) Structure Key Properties Typical Applications
304/304L 18% Cr, 8% Ni
<2% Mn, <0.08% C
(304L: <0.03% C)		 Austenitic General purpose, excellent formability, good corrosion resistance Food/beverage, architectural, general pharmaceutical
316/316L 16–18% Cr, 10–14% Ni
2–3% Mo, <0.08% C
(316L: <0.03% C)		 Austenitic Superior corrosion resistance, chloride resistance, high purity Pharma, biotech, semiconductor, marine, chemical processing
321 17–19% Cr, 9–12% Ni
Ti stabilized
<0.08% C		 Austenitic Sensitization-resistant, high-temp stability High-temperature exhaust systems, heat exchangers
2205 22% Cr, 5% Ni
3% Mo, <0.03% C		 Duplex High strength, excellent chloride SCC resistance Offshore oil/gas, chemical tankers, desalination
430 16–18% Cr
No nickel
<0.12% C		 Ferritic Magnetic, lower cost, moderate corrosion resistance Automotive trim, appliances, decorative applications
410 11.5–13.5% Cr
<1% Ni
<0.15% C		 Martensitic Hardenable, high strength, moderate corrosion resistance Cutlery, valve stems, pump shafts
⭐

High-Purity Standard: 316L Stainless Steel

For pharmaceutical, biotech, semiconductor, and high-purity applications, 316L is the industry standard. The "L" designation indicates low carbon content (<0.03%), which prevents carbide precipitation during welding and minimizes sensitization risk. Molybdenum addition (2–3%) significantly improves resistance to chloride pitting and crevice corrosion, making 316L ideal for WFI systems, clean steam, and process equipment exposed to aggressive CIP cleaning chemicals.

⚛️ Microstructure Analysis

Crystal Structure: Austenitic, Ferritic & Martensitic

The crystal structure of stainless steel determines its mechanical properties, corrosion resistance, and response to passivation. Understanding these differences is essential for material specification.

🔷

Austenitic

Crystal Structure: Face-centered cubic (FCC)
Common Grades: 304, 316, 321
Magnetic: Non-magnetic (slightly magnetic when cold-worked)
Key Properties
  • Excellent corrosion resistance
  • Highest ductility and formability
  • Cannot be hardened by heat treatment
  • Superior cryogenic properties
  • Best for high-purity applications
Passivation Behavior: Excellent. Forms stable, uniform Cr₂O₃ passive layer. Responds well to both citric and nitric acid passivation.
🔶

Ferritic

Crystal Structure: Body-centered cubic (BCC)
Common Grades: 430, 409, 446
Magnetic: Magnetic in all conditions
Key Properties
  • Lower cost (no nickel)
  • Good high-temperature oxidation resistance
  • Lower thermal expansion vs austenitic
  • Moderate corrosion resistance
  • Cannot be hardened by heat treatment
Passivation Behavior: Moderate. Forms chromium oxide layer but with less nickel enrichment. More sensitive to chloride attack than austenitic grades.
🔺

Martensitic

Crystal Structure: Body-centered tetragonal (BCT)
Common Grades: 410, 420, 440C
Magnetic: Strongly magnetic
Key Properties
  • High strength and hardness
  • Heat treatable to HRC 50+
  • Lowest corrosion resistance of stainless families
  • Good wear resistance when hardened
  • Limited ductility
Passivation Behavior: Limited. Lower chromium content results in thinner, less protective passive layer. Prone to rust if not properly maintained.

Crystal Structure Impact on Passivation

Austenitic stainless steels (300 series) form the most stable, uniform passive layers due to their high chromium and nickel content combined with FCC crystal structure. This makes them the preferred choice for all high-purity, pharmaceutical, and semiconductor applications where long-term corrosion resistance and cleanability are critical. Ferritic and martensitic grades, while useful in specific applications, generally lack the passivation quality required for GMP and high-purity environments.

🎯 Interactive Tool

Grade Selection Guide

Select a stainless steel grade to view detailed specifications, passivation requirements, and recommended applications.

316L Stainless Steel

The gold standard for pharmaceutical and high-purity applications

Chromium
16–18%
Nickel
10–14%
Molybdenum
2–3%
Carbon
<0.03%
Structure
Austenitic
Passivation
Excellent
Recommended Applications
Pharmaceutical Processing WFI Systems Clean Steam Biotech Equipment Semiconductor UPW Marine Applications Chemical Processing

304L Stainless Steel

Versatile general-purpose grade with excellent formability

Chromium
18–20%
Nickel
8–12%
Molybdenum
None
Carbon
<0.03%
Structure
Austenitic
Passivation
Excellent
Recommended Applications
Food & Beverage Dairy Processing Brewing Equipment Architectural General Industrial Data Center Cooling

321 Stainless Steel

Titanium-stabilized for high-temperature service

Chromium
17–19%
Nickel
9–12%
Titanium
5×C min
Carbon
<0.08%
Structure
Austenitic
Passivation
Good
Recommended Applications
High-Temp Exhaust Heat Exchangers Bellows & Expansion Joints Aircraft Components

2205 Duplex Stainless Steel

High-strength duplex with exceptional chloride resistance

Chromium
22%
Nickel
5%
Molybdenum
3%
Carbon
<0.03%
Structure
Duplex (50/50)
Passivation
Very Good
Recommended Applications
Offshore Oil & Gas Desalination Chemical Tankers Pulp & Paper

430 Ferritic Stainless Steel

Cost-effective ferritic grade for moderate corrosion environments

Chromium
16–18%
Nickel
None
Molybdenum
None
Carbon
<0.12%
Structure
Ferritic
Passivation
Moderate
Recommended Applications
Automotive Trim Appliances Decorative Applications Kitchen Equipment
📚 Related Resources

Explore More CXP Technical Resources

Comprehensive guides, calculators, and service information to support your passivation and system commissioning projects.

🔧

Passivation Services

📖

Technical Guides

🧹

Industrial Cleaning

🧮

Engineering Calculators

Continue to Part 2: Advanced Metallurgy

The second part of this guide covers sensitization & grain boundary corrosion, surface finishes & Ra requirements, heat-affected zones, and industry-specific material selection guidelines.

Sensitization Prevention Surface Finish (Ra) ASME BPE Requirements Electropolishing Material Selection
Continue to Part 2

Need Metallurgy-Informed Passivation Services?

CXP Solutions provides passivation services informed by deep metallurgical understanding. We evaluate material grades, surface finishes, weld quality, and fabrication history to select optimal passivation chemistry and process parameters for 304, 304L, 316, 316L, and specialty stainless steel grades.
